CloudCap
Delivery Network for Captioning Services
Link your remote captioners to your transmission endpoint via our Cloud-based Administration console with granular user & rights management, encryption, return audio and video, and more
CloudCap Features
CloudCap is a solution for providing cloud based remote captions
Cloud-Based Flexibility Between Captioners and Transmission
Easily route program audio and caption data to and from captioners securely, with low-latency
Compatible with Industry Standard Preparation Software
Our API-driven proxy seamlessly appears like a “straight wire” between the preparation software and transmission
Transmission Audio and Video sent to Captioner
Gives captioners the visual confidence they need
Centralized Web-based Interface for Easy Admin
User-level authentication, scheduling, heartbeat monitoring and encryption built-in
1RU SDI Embedding Hardware with optional On-Prem ASR
Optional back-up on-prem ASR gives compliance confidence
Powerful FPGA-based SDI CEA-608/708 / Teletext Embedding
Also compatible with all global subtitling standards
Additional Highlights
- Secure end-to-end encryption
- Centralized Web interface
- VPN not required for proxy relay service
- User authentication, account and device management
- Event scheduling
Technical Details
- Transmission endpoint SDI embedding
- 1RU rack-mount SDI embedder
- Low-latency audio CODEC, mono 8 kHz via UDP / SRT protocols
- Supports SMPTE CDP & Grand Alliance and common “Ctrl-A” protocols
- Automatic translation of received CEA-608 (Line 21) data to DTVCC data, and CC1 to CC4 channels are translated to configurable service numbers (when applicable)
- Conforms to the following CC specifications: CEA-608-E: Line 21 Data Services, CEA-708-E: Digital Television (DTV) Closed Captioning
- Can support EBU Teletext / OP-42 / OP-47 / ST-2031 caption output (conforms to ETSI EN300706, FreeTV Australia OP42 & OP47, and SMPTE ST-2031)
Flexible Endpoint Hardware Options
At transmission, choose from either a dual-SDI path 1RU unit with redundant power supplies, or a full-blown server including additional ASR-ready capabilities to serve as a 100% on-prem AI-based captioning engine for redundancy.
Easily Deployed
Our proxy service is designed to be a transparent “traffic cop” between your captioners and transmission endpoint, which you can administer to link your resources seamlessly.

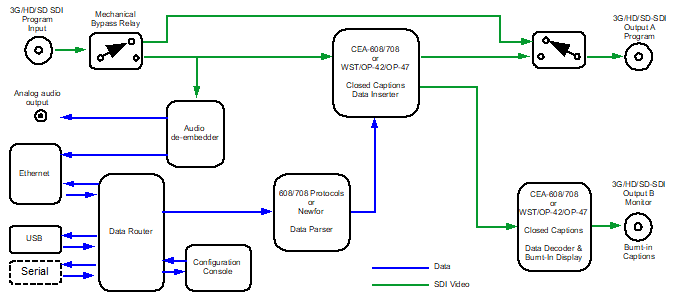

CloudCap™ delivers your program audio to the captioning source along with a proxy video stream option for added captioner confidence, and returns the text data back to your uplink location for embedding via ENCO’s FPGA-based embedders with less than one microsecond video delay, a fail-safe SDI bypass relay, and a suite of software-defined capabilities.
World Class Technical Support
All of our products are backed with 24/7 live emergency support and a comprehensive online support portal and knowledge base. Our technical support team boasts over 200 years of combined engineering experience in a wide range of broadcast professions including program directors, engineers, IT managers, and even on-air talent. From remote assistance to on-site installation, the ENCO support team is ready to help your station, even on a moment’s notice.
